Triple Tree Identification

Information on the identification and numbering of frame, motor belly, transmission and other parts
Speeding Big Twin
Posts: 1000
Joined: Wed Dec 31, 2008 2:29 am
Bikes: H-D
Location: Western Australia
Has thanked: 6 times
Been thanked: 84 times

Re: Triple Tree Identification

#31

Post by Speeding Big Twin » Tue May 25, 2010 9:32 am

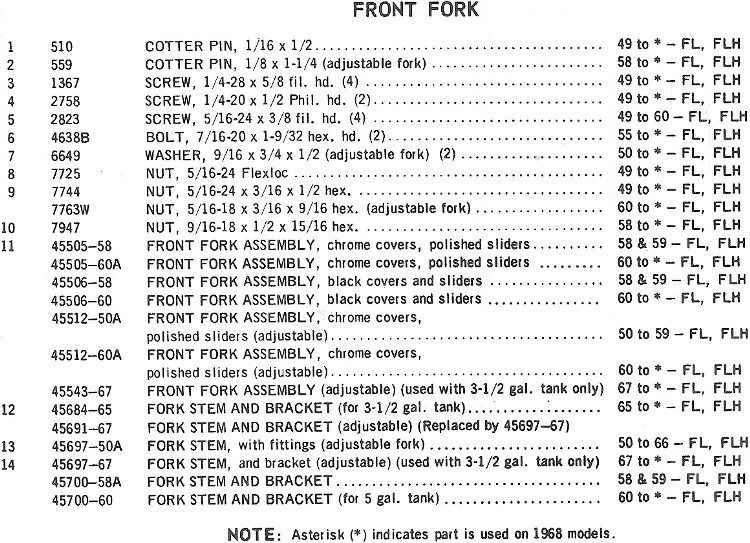

Thanks, Rod. That unused, tapped hole in your lower tree is a mystery. And my 58–68 catalog differs to your 58–65 catalog re #45700-58A in that mine says #45700-58A fits 58–59 as shown below:


Regarding when #45700-58 started in production, I can’t say for sure. And Palmer doesn’t give any hints in his FYoF list for 1958 models on page 620.

On page 216 of Classic Harley Big Twins, in relation to the introduction of the Duo-Glide frame Greg Field states: ‘The stem and top triple tree for both the fixed- and adjustable-rake forks are modified to fit the new frame. These new fork assemblies are used only for 1958 and 1959.’

But Field doesn’t say what the modifications were or why the parts needed to be modified to fit the new frame. Eric



chris haynes
Posts: 51
Joined: Wed Nov 19, 2008 6:05 am
Bikes: 27JD, 36EL, 37EL, 45EL, 46EL, 47FL, 48FL, 50FL, 52FL, 56FLE, 73G, 73X90, 95FLHTCU, 06FLHTCUI
Location: North Hills, CA
Been thanked: 7 times
Contact:

Re: Triple Tree Identification

#32

Post by chris haynes » Mon May 31, 2010 5:33 am

Here you can see the two different clamps. The Duo-Glide on top with the stem offset in the oblong boss and the Hydra-Glide on the bottom with the stem in the center of the round boss.

craig60pan
Posts: 181
Joined: Fri Dec 31, 2004 2:37 pm
Bikes: 1960 FL
1951 FL
Location: Atlanta

Re: Triple Tree Identification

#33

Post by craig60pan » Mon Jun 14, 2010 7:45 pm

Bob L
Saw this on ebay - nor sure what year it is but someone here may be able to tell
http://cgi.ebay.com/ebaymotors/VINTAGE- ... ccessories" onclick="window.open(this.href);return false;
CJ

Robert Luland
Posts: 910
Joined: Sun Sep 02, 2007 7:56 pm
Bikes: 1922JD, 1937 ULH, 1946FL 1948FL, 1957FL, 1960FLH, 1965XLCH, 1995 FLHT
Location: Hoboken, NJ
Been thanked: 38 times
Contact:

Re: Triple Tree Identification

#34

Post by Robert Luland » Mon Jun 14, 2010 8:10 pm

Thanks Craig. I scored a set last week. Yea!

craig60pan
Posts: 181
Joined: Fri Dec 31, 2004 2:37 pm
Bikes: 1960 FL
1951 FL
Location: Atlanta

Re: Triple Tree Identification

#35

Post by craig60pan » Mon Jun 14, 2010 8:12 pm

Great News
If you get a chance can you post pictures of the lower tree so I can know what to look for?
CJ

il-rigido
Posts: 38
Joined: Wed Jun 16, 2010 3:43 pm
Bikes: 1979 Bobbed cycle, 2008 FLHR, 2005 XL883R
Location: Italy

Re: Triple Tree Identification

#36

Post by il-rigido » Wed Jun 16, 2010 8:13 pm

Hi, I'm new here, but I'm curious about a thing.
I once have listen rumours about a 2° negative rake tree used on some FL in 60' and 70'.
Does anybody know something about this?
RR

il-rigido
Posts: 38
Joined: Wed Jun 16, 2010 3:43 pm
Bikes: 1979 Bobbed cycle, 2008 FLHR, 2005 XL883R
Location: Italy

Re: Triple Tree Identification

#37

Post by il-rigido » Sun Jun 20, 2010 4:57 pm

This is my bike front.
I bought this triple tree some years ago in Holland (Ebay), and I was told it's OEM, but now I have many doubts.
On the lower tree you can read "UNIVERSAL 2", and in the upper 56121-60.
It looks to have no rake.
The 2 holes for the headlight bracket, and the small one for the brake line holder have been drilled and tapped by me.
What do you think???
Let me know if you need more pics.
RR

Bosheff
Posts: 1263
Joined: Fri Jul 03, 2009 8:23 pm
Bikes: 65 FLH 82 FLH
Location: Michigan
Been thanked: 55 times

Re: Triple Tree Identification

#38

Post by Bosheff » Sun Jun 20, 2010 9:41 pm

Don't know bout the top tree, but the bottom is repop....bosheff

il-rigido
Posts: 38
Joined: Wed Jun 16, 2010 3:43 pm
Bikes: 1979 Bobbed cycle, 2008 FLHR, 2005 XL883R
Location: Italy

Re: Triple Tree Identification

#39

Post by il-rigido » Mon Jun 21, 2010 6:49 am

I was afraid to listen these worlds......
The problem is that when you assemple the fork there is a little misalignment between tubes and upper tree holes.
May be the lower and upper trees have different rake.
I'll look for a NOS (OEM) tree...
RR

Hog54
Posts: 821
Joined: Tue Aug 31, 2010 2:10 pm
Bikes: 1954 Panhead
1980 Lowrider
Has thanked: 2 times
Been thanked: 31 times

Re: Triple Tree Identification

#40

Post by Hog54 » Mon Jan 02, 2012 9:01 pm

So for a question I didnt see answered,what year are the lower trees that have 45705-48 cast on them in front of the stem and no notches in the frame stops?



Lowbikemike
Posts: 207
Joined: Thu May 07, 2009 3:49 am
Bikes: 1962 FL
1987 FXSTC
1995 FLHR
Location: Columbia, IL
Has thanked: 2 times
Been thanked: 22 times

Re: Triple Tree Identification

#41

Post by Lowbikemike » Tue Jan 03, 2012 1:42 am

What type of problems can one expect if they use the earlier style rigid lower tree on a swingarm frame?

Bosheff
Posts: 1263
Joined: Fri Jul 03, 2009 8:23 pm
Bikes: 65 FLH 82 FLH
Location: Michigan
Been thanked: 55 times

Re: Triple Tree Identification

#42

Post by Bosheff » Tue Jan 03, 2012 1:46 am

I believe it would be 49 to 57....bosheff

Hog54
Posts: 821
Joined: Tue Aug 31, 2010 2:10 pm
Bikes: 1954 Panhead
1980 Lowrider
Has thanked: 2 times
Been thanked: 31 times

Re: Triple Tree Identification

#43

Post by Hog54 » Tue Jan 03, 2012 3:54 am

Lowbikemike wrote:What type of problems can one expect if they use the earlier style rigid lower tree on a swingarm frame?

Depends what swingarm frame.On 69 and later you wouldnt have a neck lock or a padlock mount.So no locking your neck at all.

Hog54
Posts: 821
Joined: Tue Aug 31, 2010 2:10 pm
Bikes: 1954 Panhead
1980 Lowrider
Has thanked: 2 times
Been thanked: 31 times

Re: Triple Tree Identification

#44

Post by Hog54 » Tue Jan 03, 2012 3:59 am

Bosheff wrote:I believe it would be 49 to 57....bosheff


So basicly all rigids use the same lower tree?Thanks

RUBONE
Moderator
Posts: 5633
Joined: Sat Nov 15, 2008 4:09 am
Bikes: Multiple H-D, Ducati, BMW, Triumph, BSA,...
Has thanked: 61 times
Been thanked: 763 times

Re: Triple Tree Identification

#45

Post by RUBONE » Tue Jan 03, 2012 4:50 am

So basicly all rigids use the same lower tree?Thanks
All except the sidecar adjustable tree types!
Robbie
