Re: Fake Pan that's Grinning like a Possum ...

#136

Post by RooDog »

I held back on stroking my '68 FL beyond 4 5/8" because of the longer everything involved, including pushrods & covers, intake manifold, stroker plates/jugs, and had I chosen the big bore, 3 5/8, jugs, all of this would have been mandatory, so I just kept it at a measly 90" with "80" jugs, and I am happy with that....
....RooDog....



dragstews
Posts: 334
Joined: Sun Jun 05, 2011 3:24 am
Bikes: 52 Pan/Shovel
92 RS Buell
Location: Fl.
Has thanked: 95 times
Been thanked: 48 times
Contact:

Re: Fake Pan that's Grinning like a Possum ...

#137

Post by dragstews »

8)

Cool, dat just pushed me off the fence ...
4-5/8" it will be ...

Now how bout a Panster .. ??


RooDog
Site sponsor
Site sponsor
Posts: 1805
Joined: Tue Oct 31, 2017 1:00 pm
Bikes: 1950 Panhead, Resto-Mod
1968 90", 5 Speed Shovelhead,
1984 Custom Built Evo 100" Bagger
Location: Knoxville, Tennessee
Has thanked: 818 times
Been thanked: 693 times

Re: Fake Pan that's Grinning like a Possum ...

#138

Post by RooDog »

Some folks seem to think of Iron Head Sportsters as Shovelheads. They are idiots. And your earlier pics with a Shovel top side would tend to not draw the eye as the Panny tops would, hell, even Knuckle heads would be cool, but not flow as well as the Pans would especially if they were AM pieces like STD or $&$ Pans, which use later style rockers. Oh, God, the possibilities ! ! !

Not easy, things that are worth while rarely are, but doable....
It seems that suitable cams for the 1.5:1 rockers would take some sciencing out, other that that, nothing one couldn't fix with a full machine shop at hand. Dual carbs, or single, something exotic, no doubt?.... LOL.. Make it so....
....RooDog....

dragstews
Posts: 334
Joined: Sun Jun 05, 2011 3:24 am
Bikes: 52 Pan/Shovel
92 RS Buell
Location: Fl.
Has thanked: 95 times
Been thanked: 48 times
Contact:

Re: Fake Pan that's Grinning like a Possum ...

#139

Post by dragstews »

A Knuckster would be tits for sure ...
Also a Panster would net a wild look ...

Not sure what the owner will tell me to build at this point of time ...

But my own opinion would be a Shovester .... Somewhat retains the looks of the Ironheads only Supersized and being Aluminum and with running the Poole jugs, the whole dang Top-End is Aluminum .... :o

But, alas ... I'm just a wrench and do what I'm told to do regardless of what my thoughts are ....


dragstews
Posts: 334
Joined: Sun Jun 05, 2011 3:24 am
Bikes: 52 Pan/Shovel
92 RS Buell
Location: Fl.
Has thanked: 95 times
Been thanked: 48 times
Contact:

Re: Fake Pan that's Grinning like a Possum ...

#140

Post by dragstews »

Back to the Dual Carbed Pan for a moment ....

Owner will be here to pick it up by the end of the week ...
Got one more part to install when it gets here..


Kinda wanted to keep the Aluminum look going on so I ordered this beefy looking critter ...

dragstews
Posts: 334
Joined: Sun Jun 05, 2011 3:24 am
Bikes: 52 Pan/Shovel
92 RS Buell
Location: Fl.
Has thanked: 95 times
Been thanked: 48 times
Contact:

Re: Fake Pan that's Grinning like a Possum ...

#141

Post by dragstews »



dragstews
Posts: 334
Joined: Sun Jun 05, 2011 3:24 am
Bikes: 52 Pan/Shovel
92 RS Buell
Location: Fl.
Has thanked: 95 times
Been thanked: 48 times
Contact:

Re: Fake Pan that's Grinning like a Possum ...

#142

Post by dragstews »

Got a message from Andy that he made it back home safe and sound ....

He wanted to plug the motor in the frame for mock up, but was dog tired from the 1,200 mile drive home ...

More photos to come..

He's got a bit of a wait for the Speed E Shifter to come in, Nickie is about 3/4 done building it, and the Baker Jock lid hasn't been ordered just yet ...
I have a little work on the lid to do in order for it to work with the Speed-E ...


Once he gets the Speed-E a final fit and dial in will be done, then the critter will be taken apart for chroming ...

The fitting may require some work due to the tranny being raised up in the frame 1-1/4"...


Andygears
Posts: 792
Joined: Tue Feb 05, 2013 12:25 am
Bikes: 1950 panhead, 1999 FLHTCI, 1987 FLHTC custom
Location: Daytona Beach
Has thanked: 113 times
Been thanked: 211 times

Re: Fake Pan that's Grinning like a Possum ...

#143

Post by Andygears »

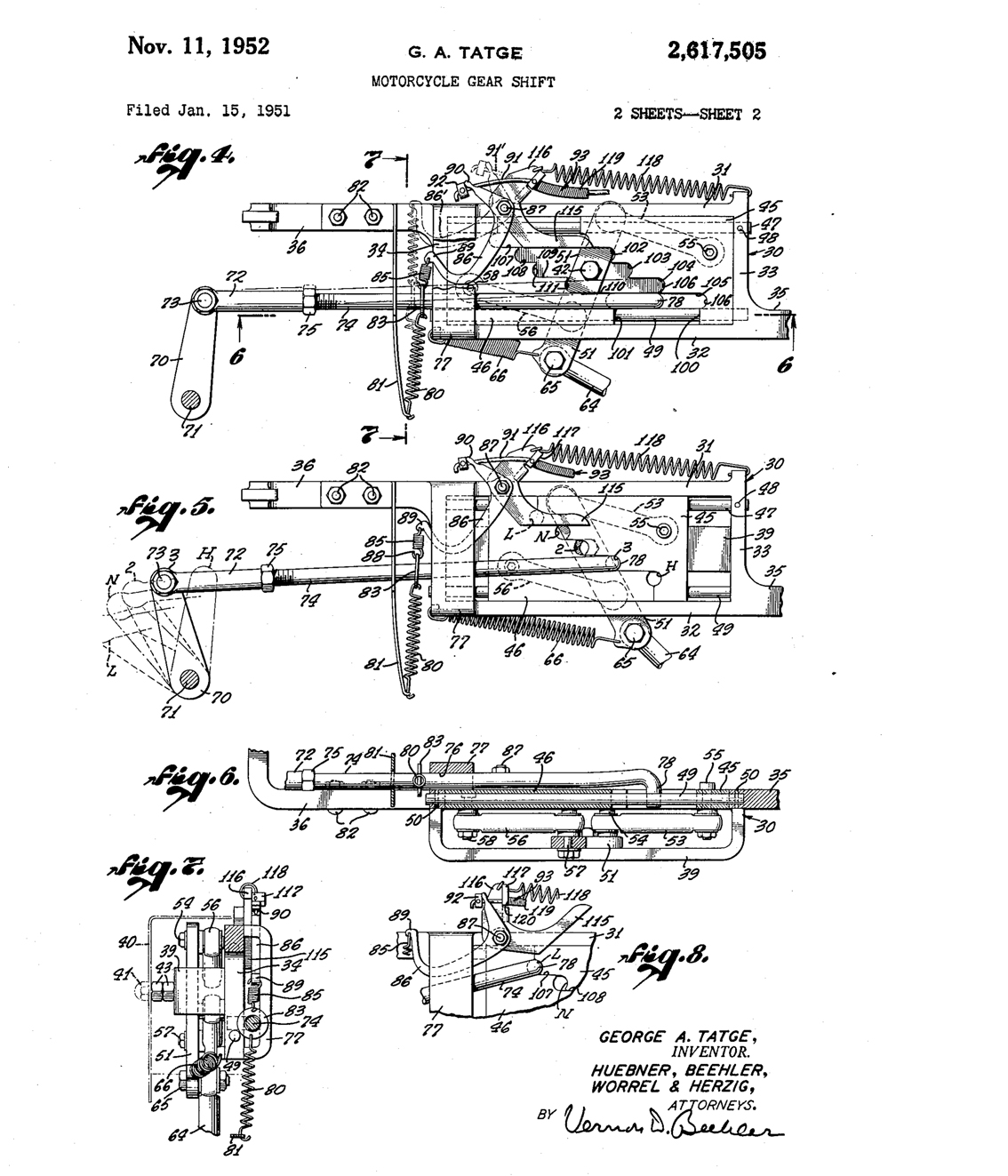

What a shame that Mr. Tatge got his patent approved the same year Harley came out with a foot shift.

Andygears

dragstews
Posts: 334
Joined: Sun Jun 05, 2011 3:24 am
Bikes: 52 Pan/Shovel
92 RS Buell
Location: Fl.
Has thanked: 95 times
Been thanked: 48 times
Contact:

Re: Fake Pan that's Grinning like a Possum ...

#144

Post by dragstews »

Yeah, as if he didn't already have enough competition with Thoro and B&H ...



dragstews
Posts: 334
Joined: Sun Jun 05, 2011 3:24 am
Bikes: 52 Pan/Shovel
92 RS Buell
Location: Fl.
Has thanked: 95 times
Been thanked: 48 times
Contact:

Re: Fake Pan that's Grinning like a Possum ...

#145

Post by dragstews »

Parts for the Monster Piglet are showing up ....


Big Foot sprocket shaft has found it's home ..


These S&S rods are new, never ran and are "For Sale" ...
Got my eye on a set of Carrillo's for the beast ..

dragstews
Posts: 334
Joined: Sun Jun 05, 2011 3:24 am
Bikes: 52 Pan/Shovel
92 RS Buell
Location: Fl.
Has thanked: 95 times
Been thanked: 48 times
Contact:

Re: Fake Pan that's Grinning like a Possum ...

#146

Post by dragstews »

Bushing kit came in today ..


Had the pulling tools laid out so I jump to with getting the old bushings out ...



Looks like #2 bushing been replaced ...

dragstews
Posts: 334
Joined: Sun Jun 05, 2011 3:24 am
Bikes: 52 Pan/Shovel
92 RS Buell
Location: Fl.
Has thanked: 95 times
Been thanked: 48 times
Contact:

Re: Fake Pan that's Grinning like a Possum ...

#147

Post by dragstews »


Cam choice has been made ... Leineweber L-6's will be going into the build ...

The cams in the above photo are the og bone stock cams that came from the Mo-Co back in 1974 ... Still runnable ..

dragstews
Posts: 334
Joined: Sun Jun 05, 2011 3:24 am
Bikes: 52 Pan/Shovel
92 RS Buell
Location: Fl.
Has thanked: 95 times
Been thanked: 48 times
Contact:

Re: Fake Pan that's Grinning like a Possum ...

#148

Post by dragstews »


These Bad-Boys are the L-6's .... :shock:
They are serious Racing cams for large strokers.
Unlimited top-end ...
